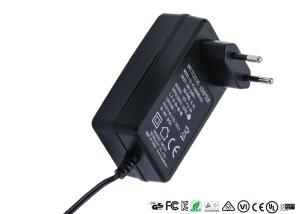

CE ROHS Approved Switching Power Adapter 9V 3A 3000MA With Low Ripple

Shenzhen Highfly Technology Co., Limited

CE ROHS Approved Switching Power Adapter 9V 3A 3000MA With Low Ripple

  • 1
  • 2
  • 3

Brand Name : Haifyer

Model Number : GS-E0900030

Certification : CE FCC UL GS BIS ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 1200000PCs/Month

Delivery Time : 15days

Packaging Details : Blister Box first then come into a carton

Name : CE ROHS Approved Switching Power Adapter 9V 3A 3000MA With Low Ripple

Input : 100-240V (90-264V Max.) 50/60Hz

Output : 9V 3000mA,1.0A

Size : 87*49*33.8MM

Weight : 123g

DC Cable : 1.5M/1.8M

Contact Now

CE ROHS Approved Switching Power Adapter 9V 3A 3000MA With Low Ripple


Output ratings

Outout(V) Ouptput(A) Power DOE VI
9V 3000mA 27W YES
9V 2800mA 25W YES
9V 2500mA 22W YES
5V 5000mA 25W YES
5V 4000mA 20W YES
5V 3500mA 17.5W YES

What Service we can supply??

1. We are UL/cUL audited power adapters factory in China.

2. More than 10 years adapter industrial experience.

it will guarantee your order 100% safe.

3. Ripple is very low about 40-61mV

4. 100% inspection and full load burn-in test Before Shipping.

6. We will choose the most economical for you and cost will be informed in advance for your consideration.decision for the shipping terms will be made according to your requirements

7. Samples will be ready within 1-3 working days.

8. We have our engineer team, if you have any question, let us know freely,

we will give you the best solution.
9. Our trade manager is online 24 hours. and we will reply your inquiry within 3.5 hours.

10. OEM packing & OEM design is acceptable.


Specifications

INPUT
Voltage Range
90-264VAC
Frequency Range
47-63Hz
Standby Power
0.097W max
Efficiency
ErP 3.0 / CEC VI
AC Input Current
1.47A max at 230VAC at full load
Inrush Current
Peak inrush current shall be limited to 30A within 10ms at 263VAC ( Cold Start )
OUTPUT
DC Voltage ( Range )
9V
Voltage Range
±5%
Load Current ( Range )
0-3000mA
Range Power
27W
Voltage Tolerance
±5%
Line Regulation
±1%
Load Regulation
±5%
DC Cord Length
1.2M,1.5M,
DC Connector
5.5mmx2.1mm*10mm, 5.5mmx2.5mm
4.0mmx1.7mm
Micro USB
or customized
Protection
Over-Current Protection
Yes

Over Voltage Protection
Yes
Over temperature Protection
Yes
Short Circuit Protection
Yes
safety approval
UL / cUL / CE / TUV-GS / RCM / PSE/EAC
Warranty
36 months
Packaging
PE bag or white box

CE ROHS Approved Switching Power Adapter 9V 3A 3000MA With Low Ripple

FAQ

Q1: What are the main products in your company?

A1: Our main products include switching power adapter, usb charger, battery chargers


Q2: Is your product safety approved?

A2: Yes.of course,we have all certificate

Q3: How about the protection of product?

A3: All of our products have protection of short-circuit, overload, over voltage and reserve polarity.

Q4. What certificates do you have?

A4: CE, FCC, UL, SAA, GS, PSE, CB, KC,EAC

Q5: What's your MOQ for OEM order ?

A5:MOQ for OEM orders is 850pcs.

Q6: Do you accept small quantity orders?

A6: Yes, for our regular products,we accept small quantity.

Q7: What about the warranty of your products ?

A7: All of our products have 3 year warranty.

Q8: How about the producing time ?

A8: Usually 15 days for 3,000-8,500 pcs

Q9: Can you provide sample?

A9: Yes. we can provide Free sample .

Q10: Can I print my brand logo on the adapter?

A10: Sure, that's no problem.OEM is welcome

Q11: What can you do if the product is broken?

A11: We promise to replace new ones to you if it happened during the warranty period.But our product defective rate is very very low


Q12: Which shipment available?

A12: Normally, we ship sample by express (DHL,FEDEX,TNT
....).


Q13: What's the Payment do you have?

A13: We usually use T/T, L/C, WesternUnion, paypal.
